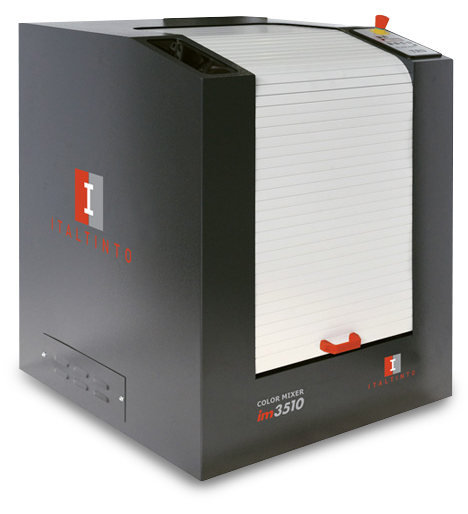

im 3510 Technical Features

UNAVAILABLE for Americas region

  • Can type: Round / oval / square
  • Maximum load: 40 Kg (88 lbs)
  • Maximum can height: 410 mm
  • Minimum can height: 90 mm
  • Maximum can diameter: Ø 380 mm
  • Diagonal for rectangular can: 360 mm
  • Mixer type: Automatic Gyroscopic Mixer
  • Mixing rotation: Clockwise
  • Power supply: 220-240 V, 50-60 Hz.110-120 V (opzionale), 50-60 Hz
  • Locking system: Automatic
  • Pull-out loading plate: 3 preset for automatic detection of cans
  • Electronic timer: 20 Sec-30 min
  • Rated power: 1.2 kw
  • Maximum level of noise: < 70 dB
 Why choose the im 3510



  • Fully automatic bi-axial gyroscopic mixer for use in professional paint stores and all kind of retail environments
  • Three pre-set and two customized speeds
  • Acceleration and deceleration of the mixing cycle for a better mixing
  • Extractable can loading plate
  • A transparent door helps monitor mix cycle
  • The top hatch can be opened for easy maintenance and cleaning
  • Flexible ergonomic design with door set-up for right or left opening
  • Low operational noise level
800 W x 795 D x 990 H mm – Net Weight 190 Kg
(31,5 W x 31,3 D x 39 H pollici) – Net Weight 418 lbs
840 W x 990 D x 1200 H mm – Gross Weight 210 Kg
(33,1 W x 39 D x 47,3 H in) – Gross Weight 462 lbs
Protection level IP54 – CE compliance
