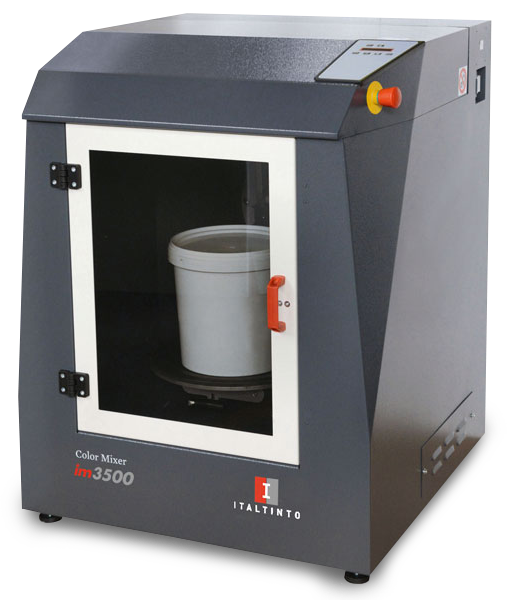

im 3500 Technical Features

  • Maximum load: 40 kg (88 lb)
  • Can type: Round / oval / square
  • Maximum can height: 435 mm (17.1 in)
  • Minimum can height: 80 mm (3.2 in) without adapter
  • Maximum can diameter: Ø 380 mm ( Ø 15.0 in)
  • Diagonal for rectangular can: 370 mm (14.6 in)
  • Mixer type: Fully Automatic Gyroscopic Mixer
  • Mixing rotation: Clockwise
  • Power supply: 110 – 120 V / 220 – 240 V / 50 – 60 Hz
  • Machine weight: 190 kg (418 lb)
  • Clamping system: Automatic
  • Mixer speed: 3 pre-set for automatic can detection (86, 110, 185 rpm) and two customized (86-110 rpm)
  • Electronic timer: 1 – 30 min
  • Nominal power: 1.2 kw
  • Maximum noise level: < 70 dB
Why choose the im 3500



  • Fully automatic bi-axial gyroscopic mixer for use in professional paint stores and all kind of retail environments
  • Three pre-set and two customized speeds
  • Acceleration and deceleration of the mixing cycle for a better mixing
  • Extractable can loading plate
  • A transparent door helps monitor mix cycle
  • The top hatch can be opened for easy maintenance and cleaning
  • Flexible ergonomic design with door set-up for right or left opening
  • Low operational noise level
790 W x 842 D x 1015 H mm
(31.1 W x 33.2 D x 40.0 H in)
840 W x 990 D x 1200 H mm – Gross Weight 210 kg
(33.1 W x 39.0 D x 47.3 H in) – Gross Weight 462 lbs
Protection level IP54 – CE compliance
